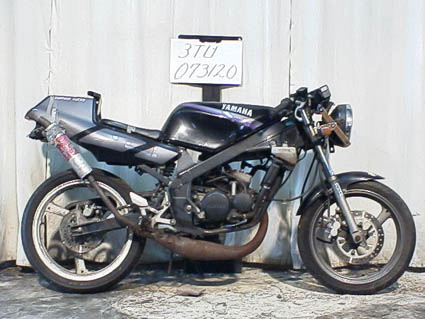

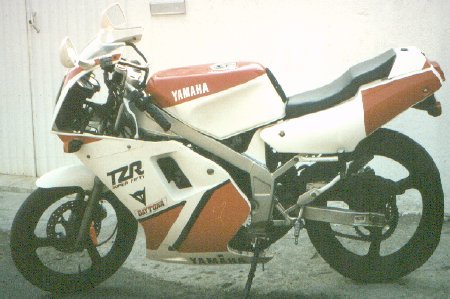

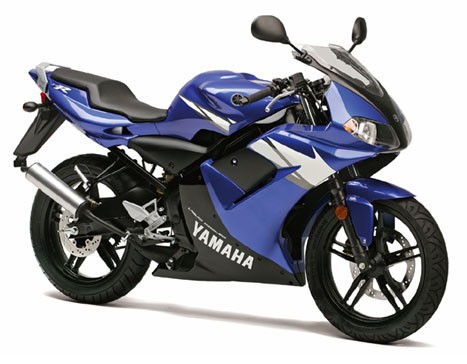

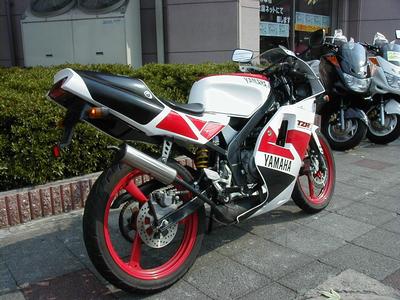

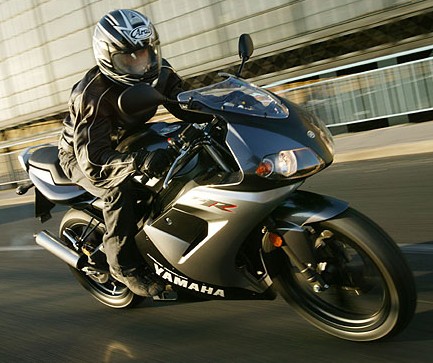

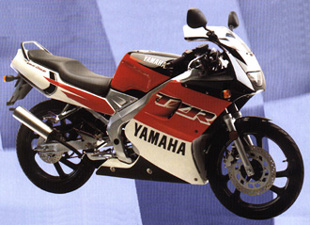

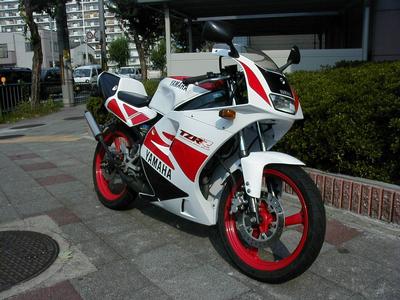

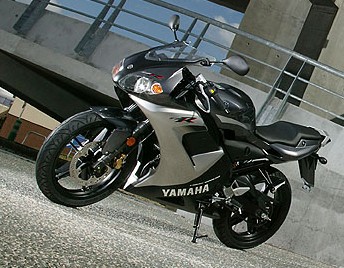

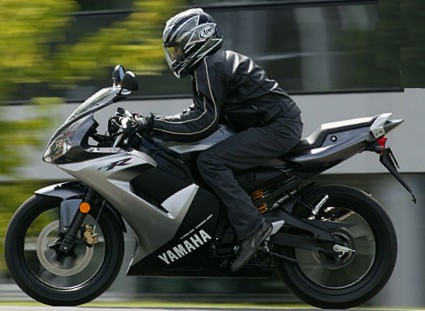

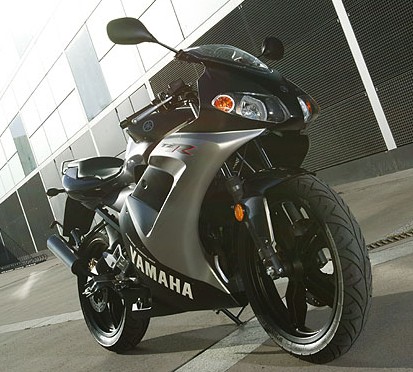

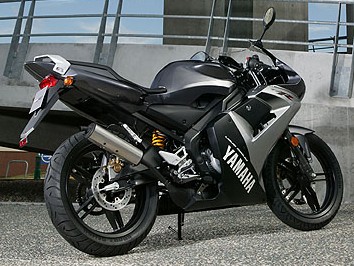

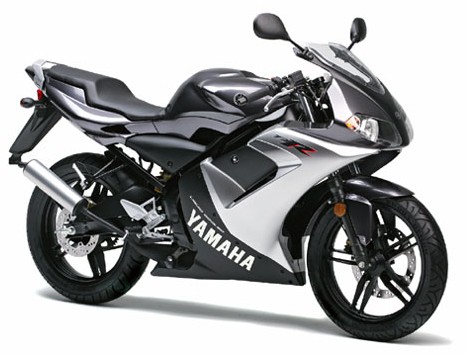

Yamaha TZR 50
| Main info | |
|---|---|
| Make | Yamaha |
| Type | TZR 50 |
| Year built | 2004 |
| Estimated price | 2500,- Euro's |
| Engine | |
| Stroke | 2 |
| Cylinders | 1 |
| Displacement | 49.7 cc |
| Bore and stroke | 40.3 x 39 mm |
| Compression | 11.5 : 1 |
| Cooling | Liquid |
| Lubrication | Seperate,Automatic |
| Carburetor | PHBN 16 |
| Ignition | CDI |
| Gears | 6 |
| Sprockets | — |
| Starter | Electric |
| Suspension & brakes | |
| Front suspension | Hydraulic and telescopic fork |
| Rear suspension | Swingarm |
| Front brake | Single disc, ? 280mm |
| Rear brake | Single disc, ? 220mm |
| Front tire | 100/80 - 17 |
| Rear tire | 130/70 - 17 |
| Dimensions | |
| Length | — |
| Width | — |
| Height | — |
| Wheelbase | 1341 mm |
| Rake | — |
| Trail | — |
| Seat height | 815 mm |
| Dry weight | 113 Kg |
| Fuel tank | 13.8 |
| Oil tank | — |
| Top speed | 100 km/h |
| Performance figures | |
| Horsepower | 7 @ 10000 rpm |
| Kilowatts | — |
| Torque (Nm) | — |
